Case S12: Non-flat objects in linear motion

This example shows coating of non-flat objects that undergo a linear motion, relative to an elongated planer magnetron source.

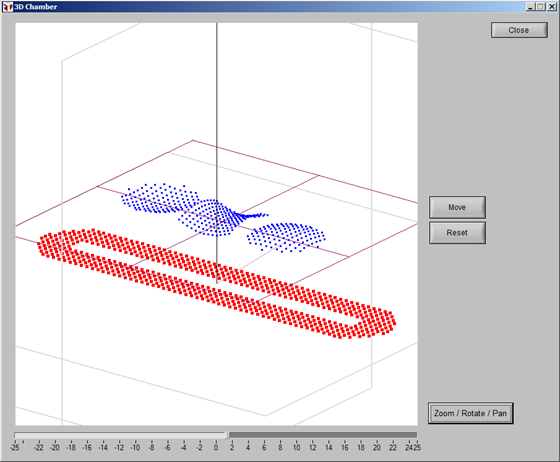

The source is a rectangle-shaped planar magnetron sputtering target. It is created through specifying a prototype given in the source sub-panel of V-Grade 5S. The objects to be coated are 1) a convex spherical surface; 2) a concave spherical surface; and 3) a saddle.
Get the Most out
of Your Coaters
Hardware requirements
Request a Free Trial
Case Studies with
V-Grade 5 &
V-Grade 5S

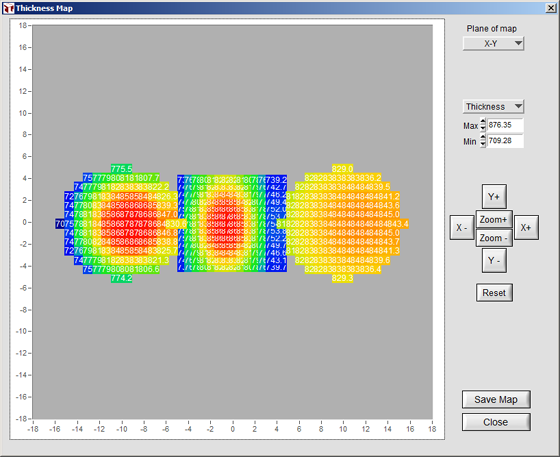

The deposited thickness values on the three objects can be computed all at once. The resultant thickness distribution is shown in the V-Grade 5S thickness maps below. These maps display thickness values in false color and in thickness labels. You can zoom in to view the thickness values of each and every sampled points.
Convex sphere
Concave sphere
Saddle

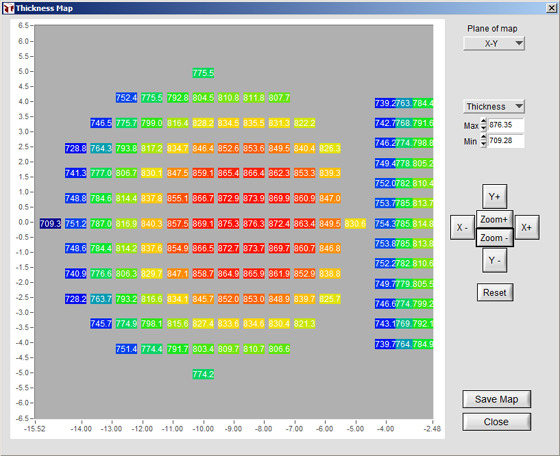

Zoomed in: Convex sphere
